Ventilation System Package

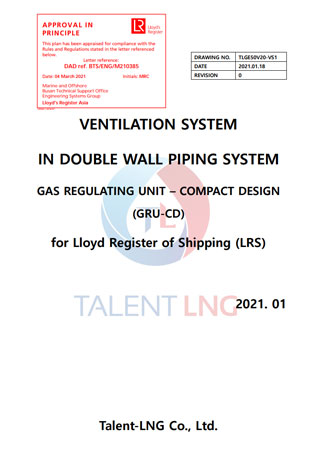

Double Wall Piping Ventilation System Package
- We have been designing and fabricating total Ventilation System Packages according to customers’ needs and applications.
- Fan, Flow Sensor, Gas Detector and the other related Valves
FAN: Explosion Proof Fan
Flow Sensor & Gas Detector
Centrifugal Fan
- It can be used for the smooth ventilation in the limited space which needs air ventilation / cooling / heating and also can be used for mechanical exhaust / supply considering the standard air change corresponding to its use in the room
- D.W.P / GVU / GRU / LNG Space / Gass free / Auxiliary / Boiler F.D / Plant / Etc.
| No. | Contents | Technical Range |
|---|---|---|
| 1 | Air Volume | Up to 1,000m3/min |
| 2 | Static Pressure | Up to 2000 mmAq |
| 3 | Fan Diameter | 100mm ~ 1,800mm |
| 4 | Motor Capacity | 0.4kw ~ 200kw |
| 5 | Air Velocity | 1m/s ~ 80m/s |
| 6 | Fan Speed | 800 ~ 3,500rpm |
| 7 | Sound Level | 60dB ~ 135dB |
| 8 | Efficiency | 50 ~ 90% |
| 9 | Use | Ship, Plant, Land |
Axial Flow Fan
- It can be used for the smooth ventilation in the limited space which needs air ventilation / cooling / heating and also can be used for mechanical exhaust / supply considering the standard air change corresponding to its use in the room
Engine room / Cargo hold / Purifier room / Battery room / Paint store / Plant / Land
| No. | Contents | Technical Range |
|---|---|---|
| 1 | Air Volume | Up to 5,000m3/min |
| 2 | Static Pressure | Up to 150 mmAq |
| 3 | Fan Diameter | 300mm ~ 2,500mm |
| 4 | Motor Capacity | 0.4kw ~ 160kw |
| 5 | Air Velocity | 1m/s ~ 30m/s |
| 6 | Fan Speed | 750 ~ 3,500rpm |
| 7 | Sound Level | 60dB ~ 125dB |
| 8 | Efficiency | 50 ~ 90% |
| 9 | Use | Ship, Plant, Land |
Jet Fan
- Effectively satisfy required air change rate in tunnel and parking lots.
- Effectively ventilate air in emergency due to equal performance of toward front and toward rear.
- Effectively vent the contaminated air in underground parking lot which is generally poor in ventilation.
- Low noise, Easy installation
Mushroom Head
- An opening / closing damper is installed inside so that it can block up water used for fire extinguishing and high wave
Damper
- It can control air volume by being connected to the duct part of air ventilation. And at the fire of ship or building, it blocks up flame or air to prevent a big fire in advance
Silnencer
- It is attached to fan or other equipment making noise so that it can directly block up or decrease noise from its source
Manhole Fan
- Discharge inside gas to outside(Reversible)
- Modularization
- Commissioning
- Project Consultation
- Material Selection
